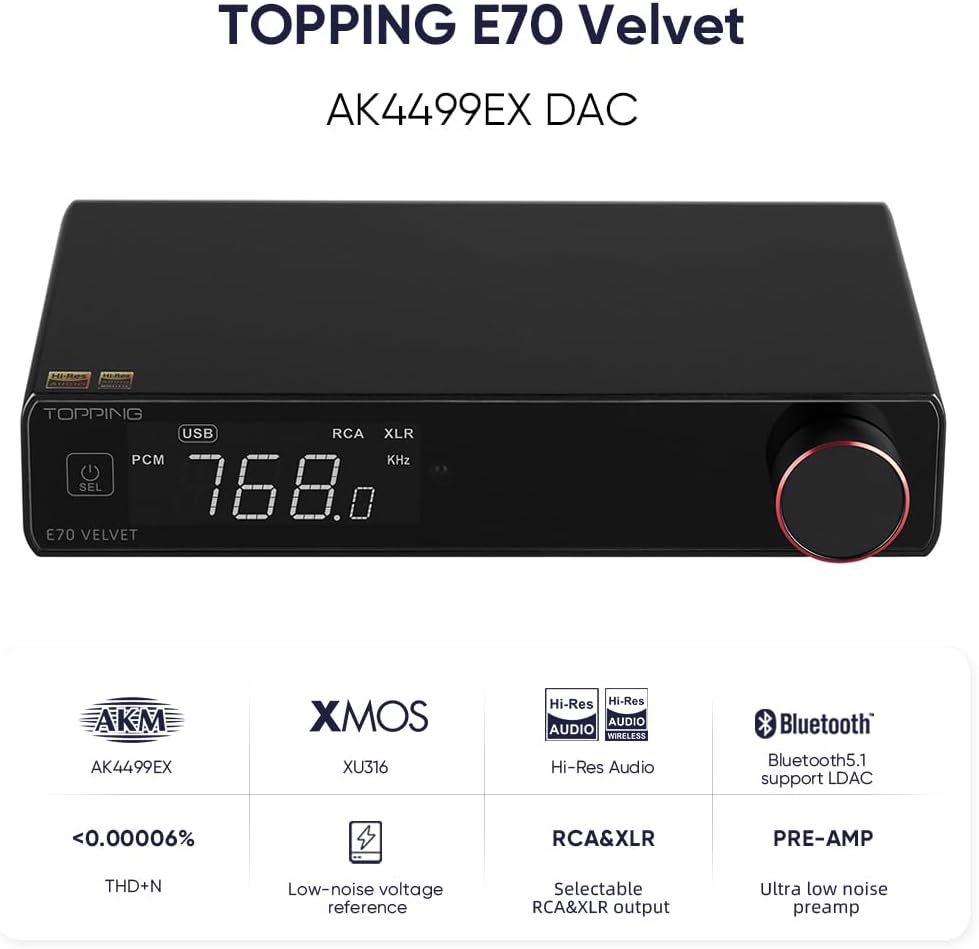

TOPPING E70 VELVET AK4499EX DAC XMOS XU316 DSD512 32bit/768kHz Decoder Bluetooth 5.1 USB/OPT/COAX Input RCA/XLR Output Audio Converter Hi-Res DAC with Remote Control (Black)
5.0 (135 items)
Limited Time SaleUS$209.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211043642 | Release Date | 2026/04/04 | List Price | US$139.60 | Model Number | 211043642 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
TOPPING E70 VELVET AK4499EX DAC XMOS XU316 DSD512 32bit/768kHz Decoder Bluetooth 5.1 USB/OPT/COAX Input RCA/XLR Output Audio Converter Hi-Res DAC with Remote Control Compatible with various combinations:The L70 has a design language and style that perfectly matches the E70 VELVET and is sufficient to meet the needs of most headphones for earphones. The E70 VELVET and L70 can be switched on and off through the 12V Trigger interface, so that the L70 can be synchronized with the automatic or manual on/off of the E70 VELVET Product parameters: USBIN:DSD(Native):44.1kHz-768kHz/16bit-32bit;DSD(DoP):DSD64-DSD512;DSD64-DSD256 COAX/OPT IN: 44.1kHz-192kHz/16bit-24bit; BT IN: AAC/SBC/APTX/APTX LL/APTX HD/APTX-Adaptive/LDAC RCA OUT: THD+N (A-wt): <0.00008% @1kHz THD@90kBw (No-wt): <0.0002% @20-20kHz SNR (A-wt): 125dB @1kHz Dynamic range (A-wt): 125dB @1kHz Frequency Response: 20Hz-40kHz (±0.3dB); 20Hz-40kHz (±1.0dB) Output Level: 2.1Vrms @0dBFS(4V Mode); 2.5Vrms @0dBFS(5V Mode) Noise (A-WD): <1.3uVrms Channel Crosstalk: -130dB @1kHz Channel Balance: 0.3dB Output Impedance: 50Ω XLR OUT: THD+N (A-wt): <0.00006% @1kHz THD@90kBw (No-wt): <0.0002% @20-20kHz SNR (A-wt): 131dB @1kHz Dynamic range (A-wt): 131dB @1kHz Frequency Response: 20Hz-40kHz (±0.2dB); 20Hz-40kHz (±0.8dB) Output Level: 4.2Vrms @0dBFS(4V Mode); 5.0Vrms @0dBFS(5V Mode) Noise (A-WD): <1.3uVrms Channel Crosstalk: -143dB @1kHz Channel Balance: 0.3dB Output Impedance:100Ω Size: 20.0cm x 13.8cm x 4.4cm Contents list 1*E70 VELVET 1*Remote control 1*USB cable 1*AC cable 1*Bluetooth antenna 1*User manual 1*TOPPING card

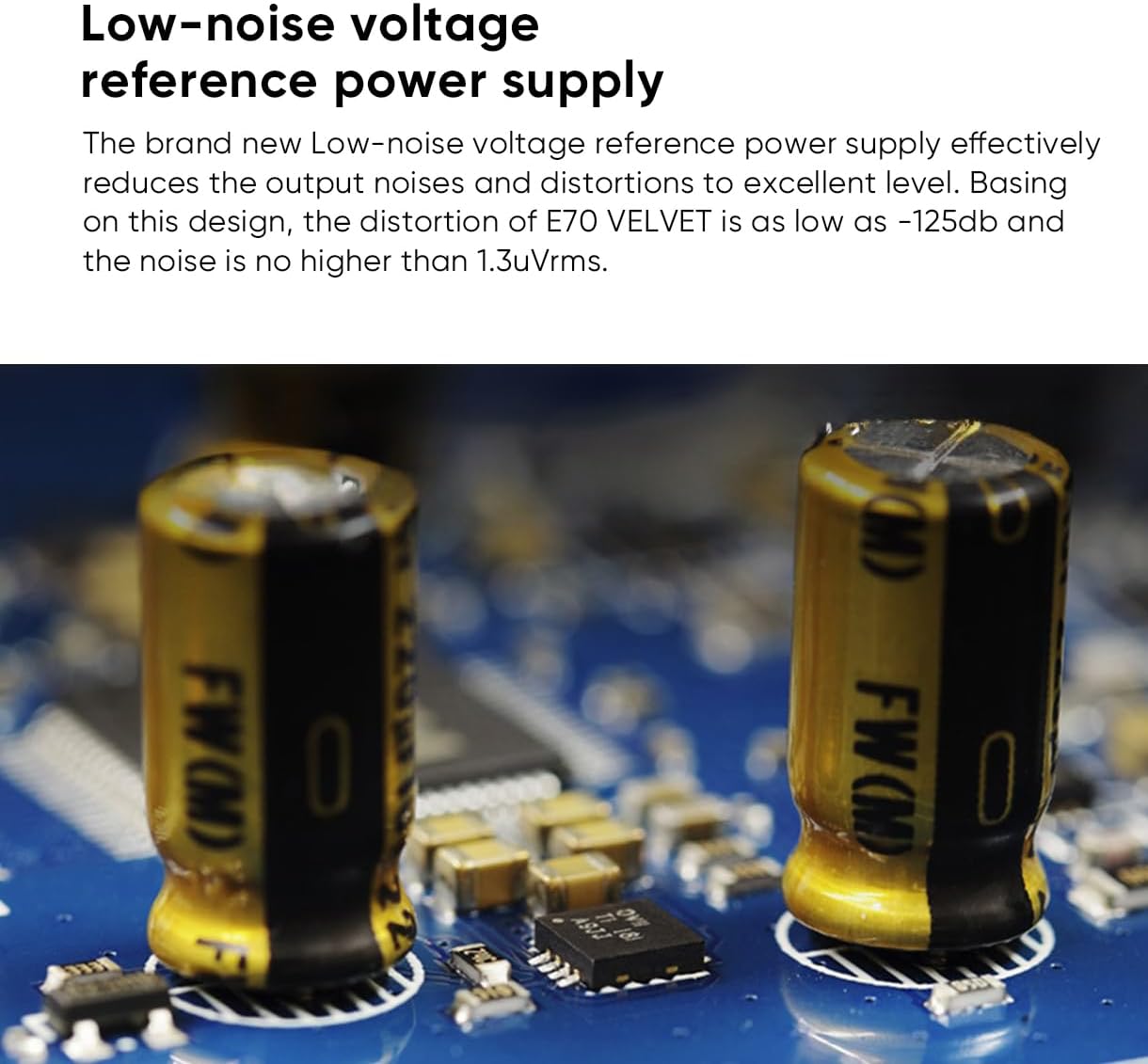

- 【Excellent performance】The E70 VELVET uses AK4499EX DAC. New XMOS XU316 support DSD512 & PCM768kHz. The distortion of E70V is as low as -125db and the noise is no higher than 1.3uVrms. THD +N of E70V is already lower than 0.00006% (A-weighted ).

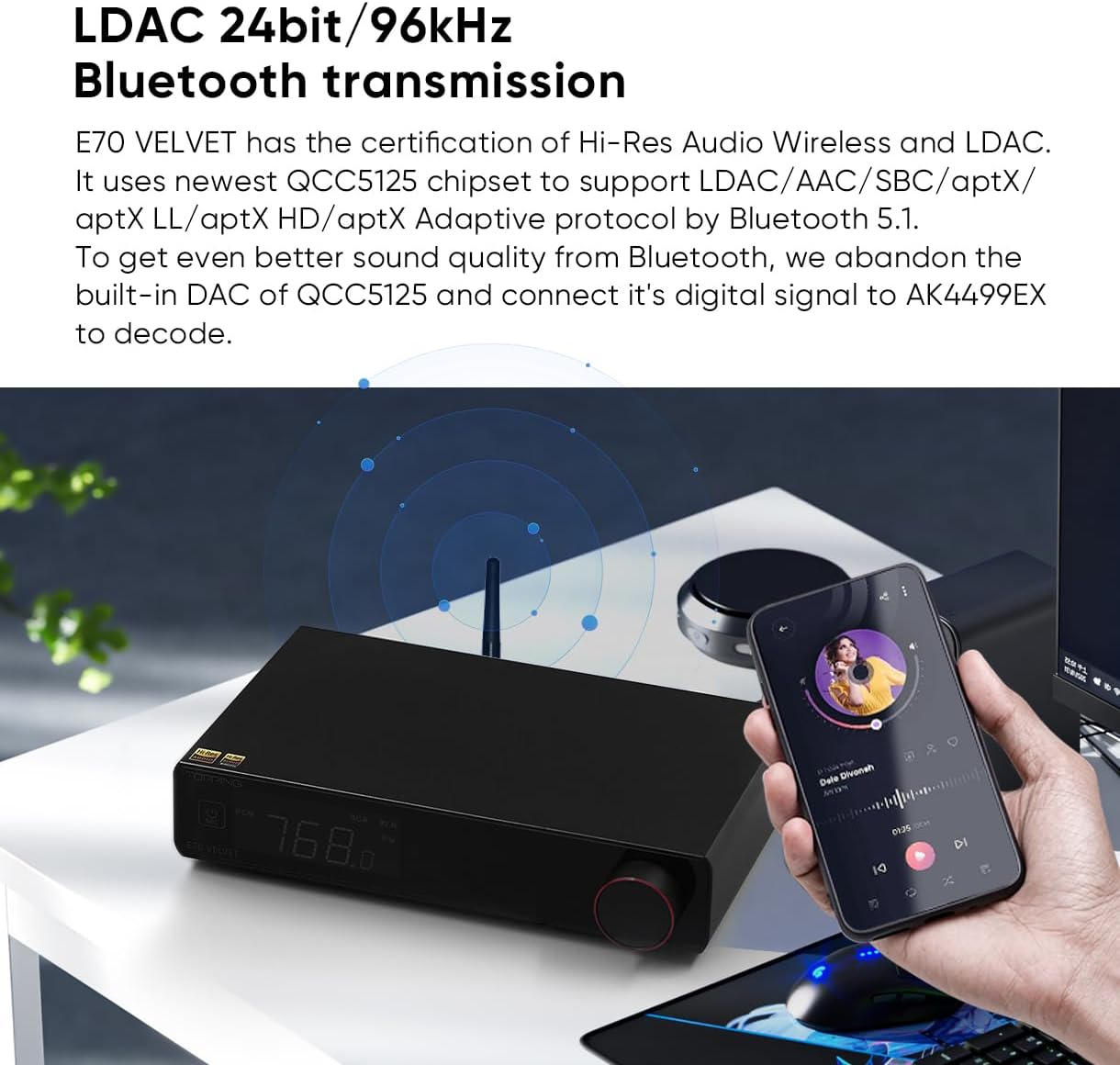

- 【LDAC 24bit/96kHz Bluetooth5.1】E70 has the certification of Hi-Res Audio Wireless and LDAC. It uses new QCC5125 to support LDAC / AAC /SBC/aptX /aptX LL/aptX HD/aptX Adaptive protocol by Bluetooth 5.1.

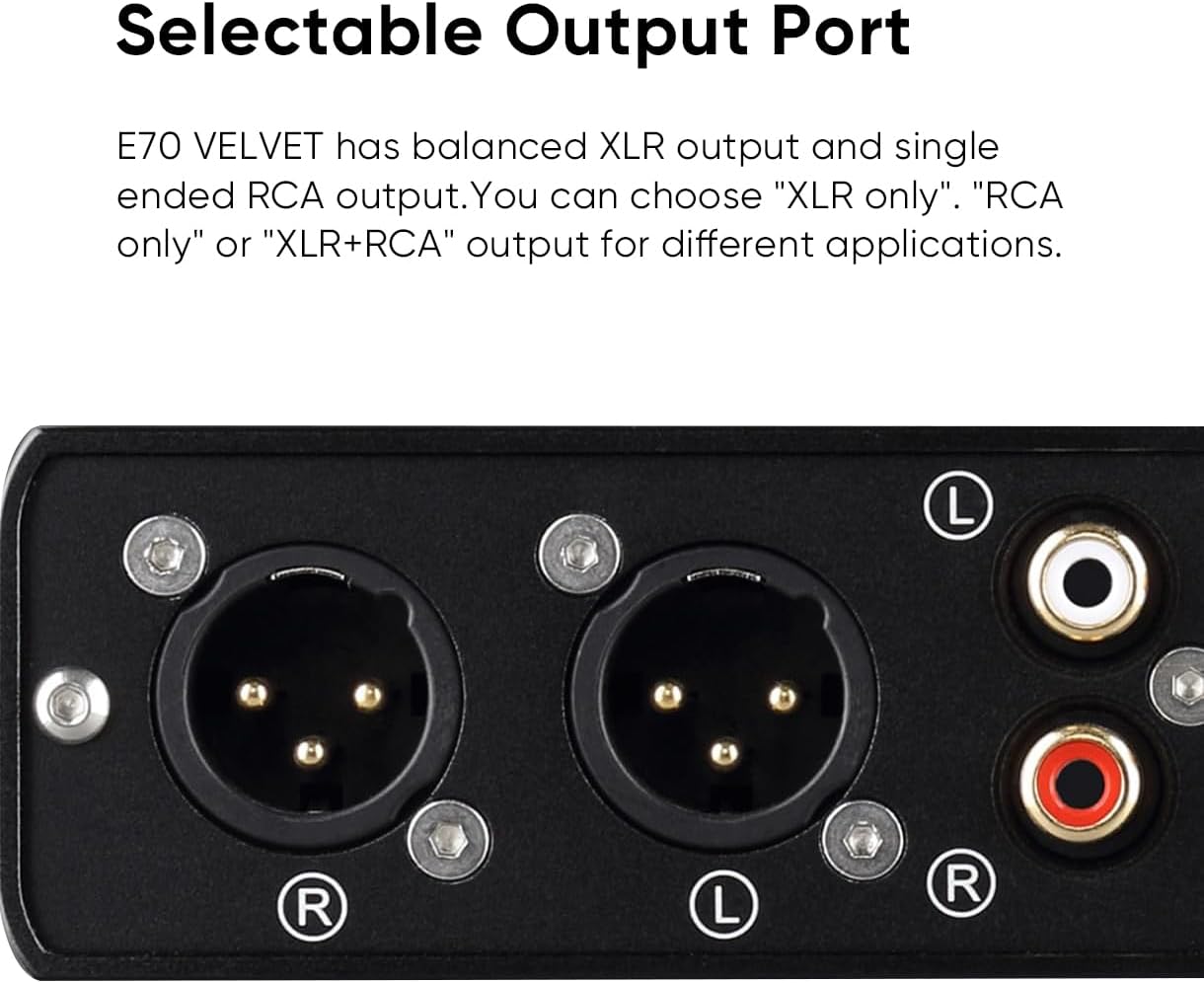

- 【Multiple output ports】E70V has balanced XLR output and single ended RCA output. You can choose"XLR only ", "RCA only "or"XLR + RCA"output to for different applications. In addition to the DAC mode with a fixed output level, the E70V also has a DAC + preamplifier mode .
- 【Coaxial and Optical Input】The optical and coaxial input of E70V supports up to PCM24bit/ 192kHz and DSD512 audio, which is suitable for digital turntables, disk players, set-top boxes, and game consoles, so that traditional equipment can also give a new sound.
- 【Inputs support Auto On/off function】E70V auto On/Off function, it will automatically turn on and set to the input which the signal is valid. The E70v can be turned on and off synchronously with other devices equipped with a 12V Trigger interface.
- If you have any questions during use, AOSHIDA will quickly guide you to solve them.
| Interface | USB |
|---|---|
| Brand Name | AOSHIDA |
| Item Weight | 1 Kilograms |
| Manufacturer | TOPPING |
| Material Type | Metal |
| Mounting Type | Wall Mount |
| Number of Pins | 5 |
| Number of Channels | 2 |

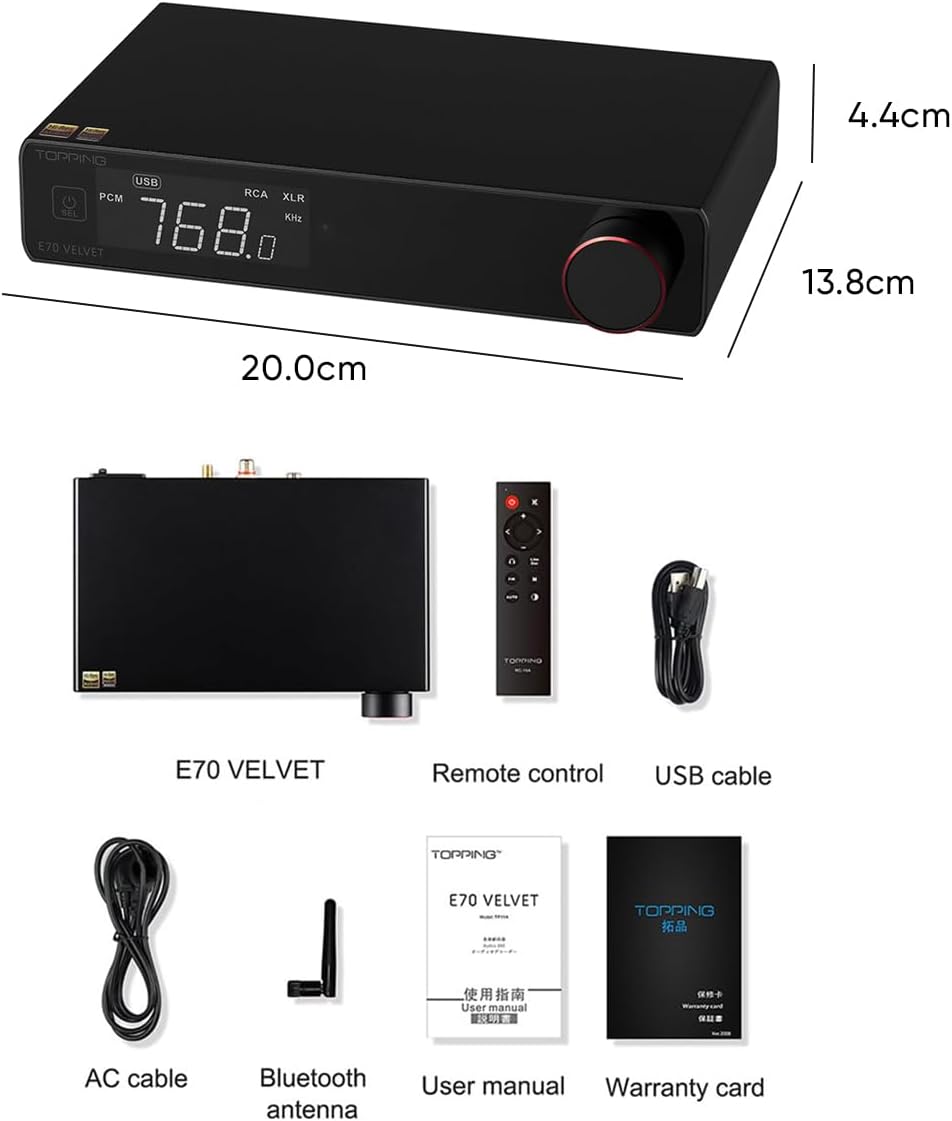

| Item Dimensions L x W | 7.87"L x 5.43"W |
| Maximum Supply Voltage | 5 Volts (DC) |
